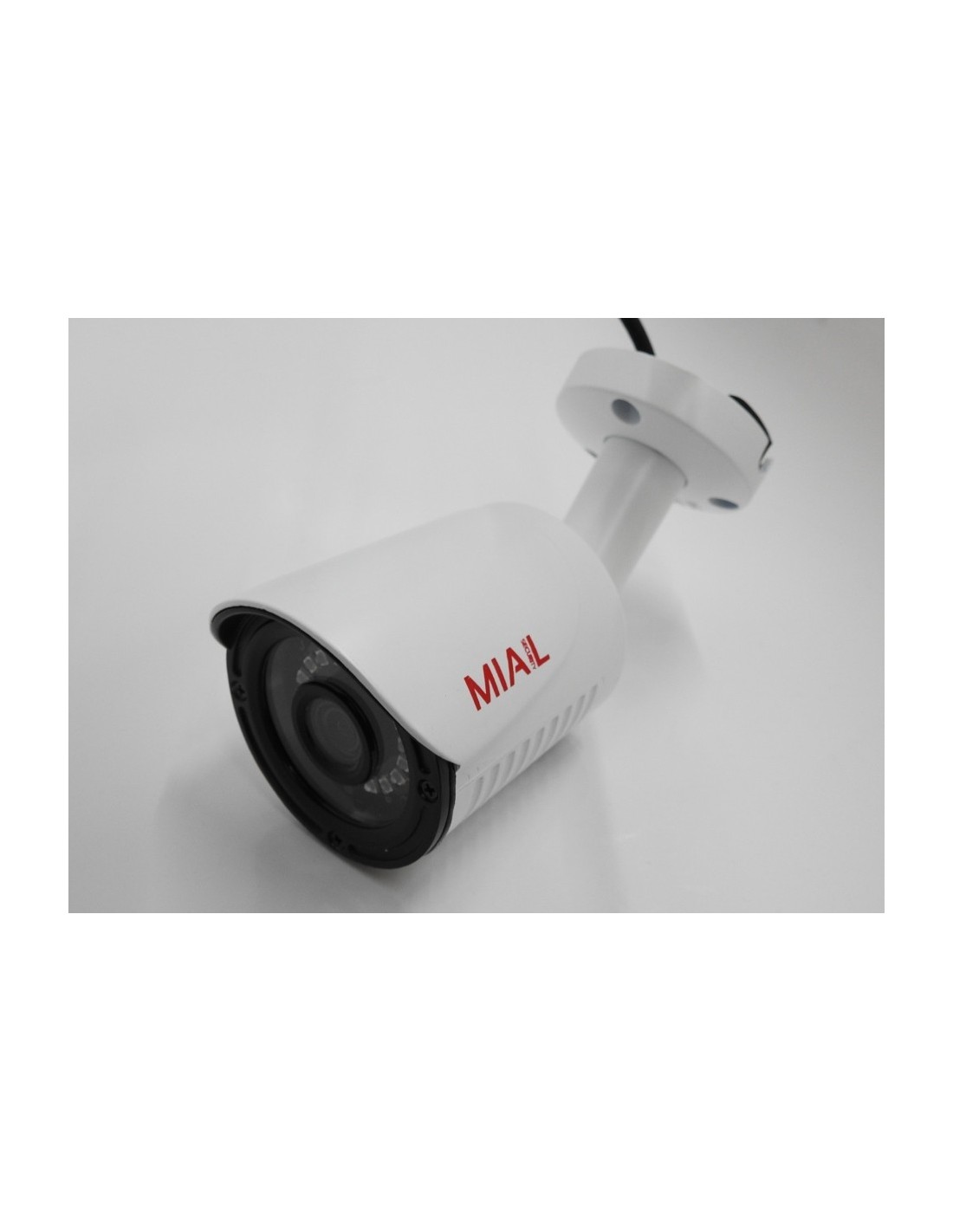

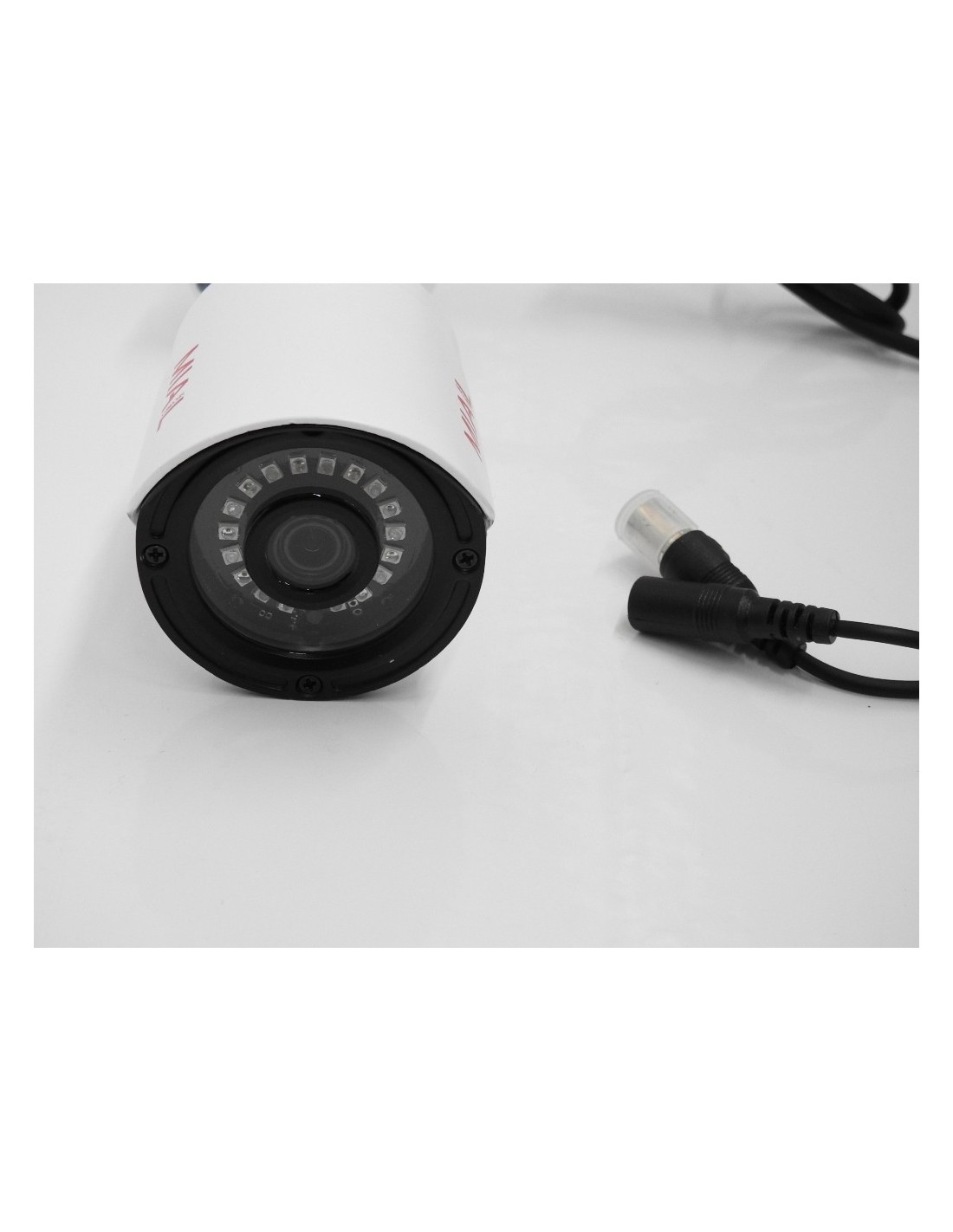

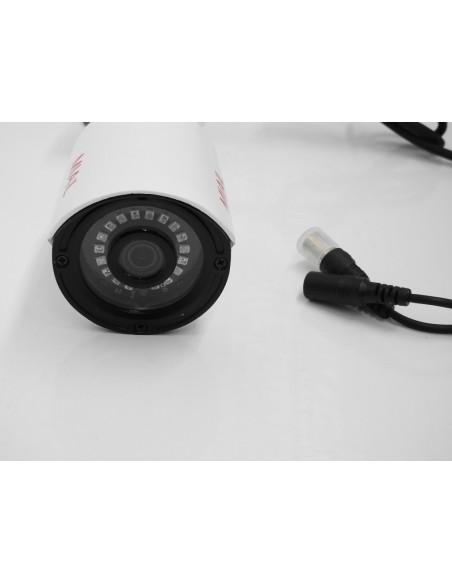

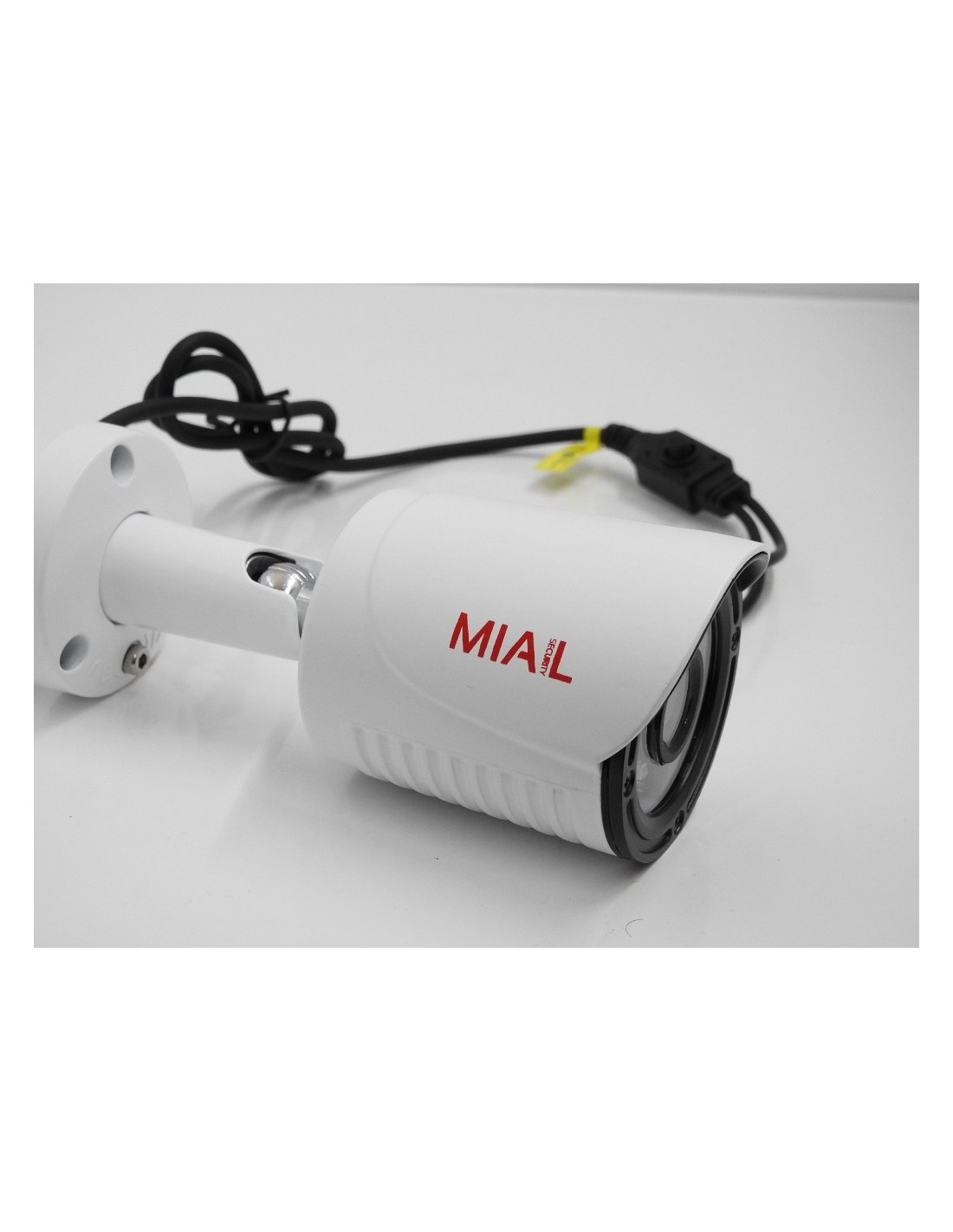

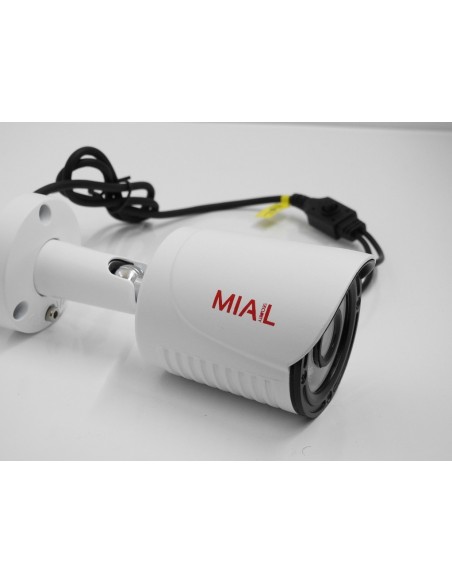

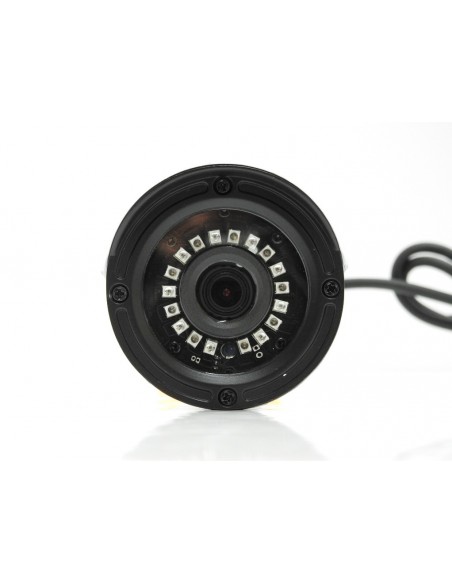

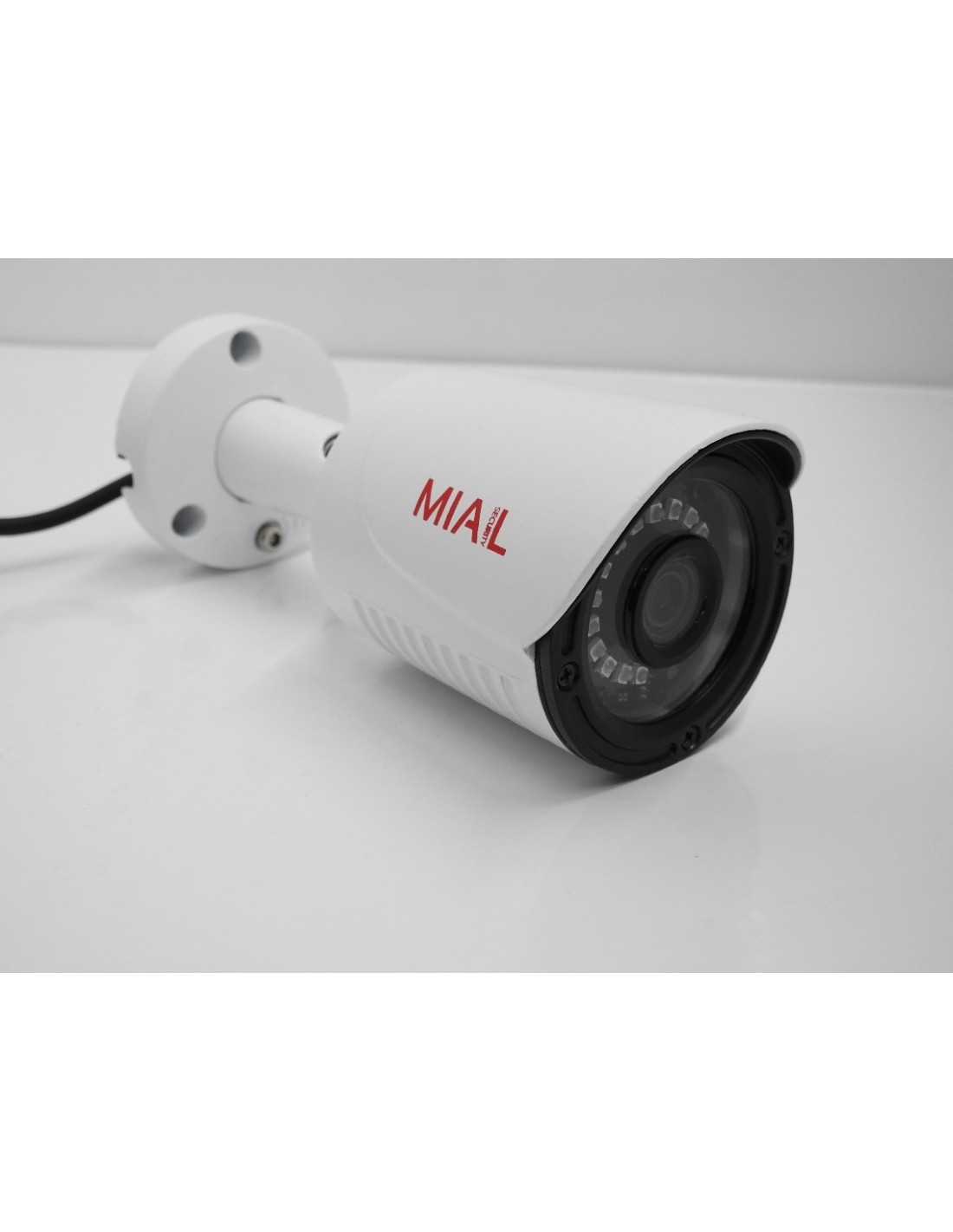

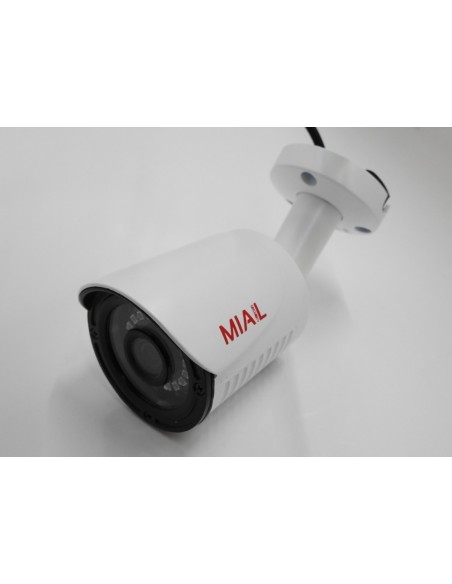

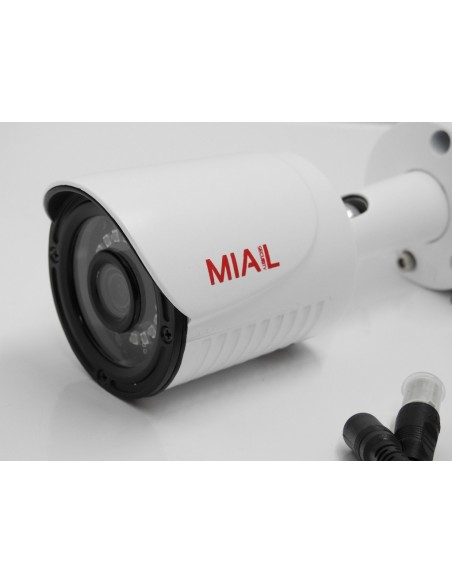

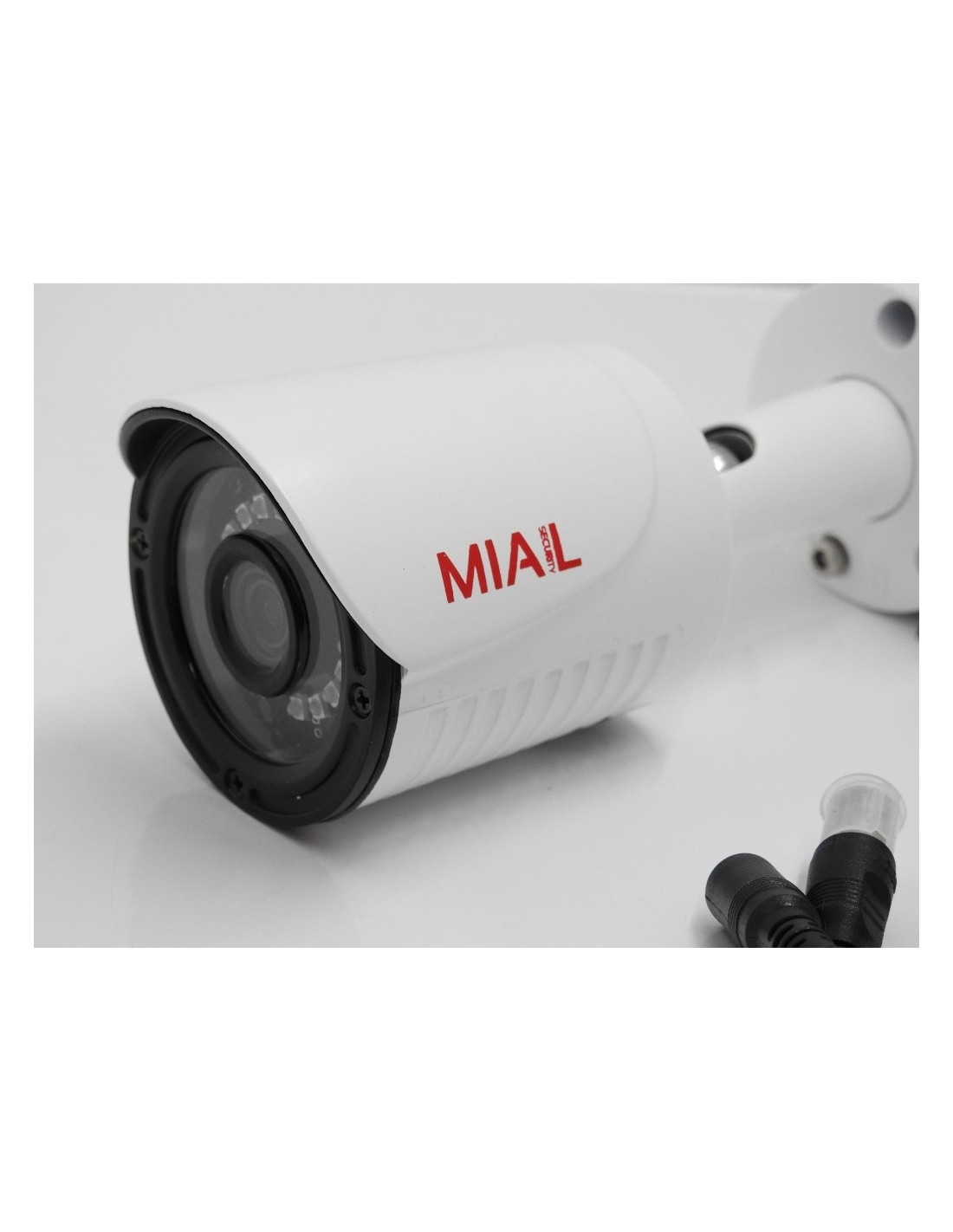

Telecamera mini Bullet focale fissa
Ottica Sony 2.4mpx 18 irled fino a 25 Metri
00SPECIFICHE TECNICHE:
|
Model NO. |
LS-BVQ25A-200H |
|
|
Video Output Mode |
AHD/CVBS |
|
|
Camera |
||
|
Image Sensor |
IMX322 |
|
|
DSP |
NVP2441H |
|
|
Image Resolution |
1080P/960H |
|
|
Effective Pixels |
2.4MP, 1920x1080 |
|
|
TV System |
PAL/NTSC |
|
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
|
|
S/N Ratio |
≥50dB |
|
|
Scanning System |
Progressive Scan |
|
|
Lens |
||
|
Focus Length |
Board Lens 3.6mm/F2.0 |
|
|
Focus Control |
Fixed |
|
|
Lens Type |
Fixed |
|
|
Pixels |
2M Pixels |
|
|
Auto Iris Support |
NO |
|
|

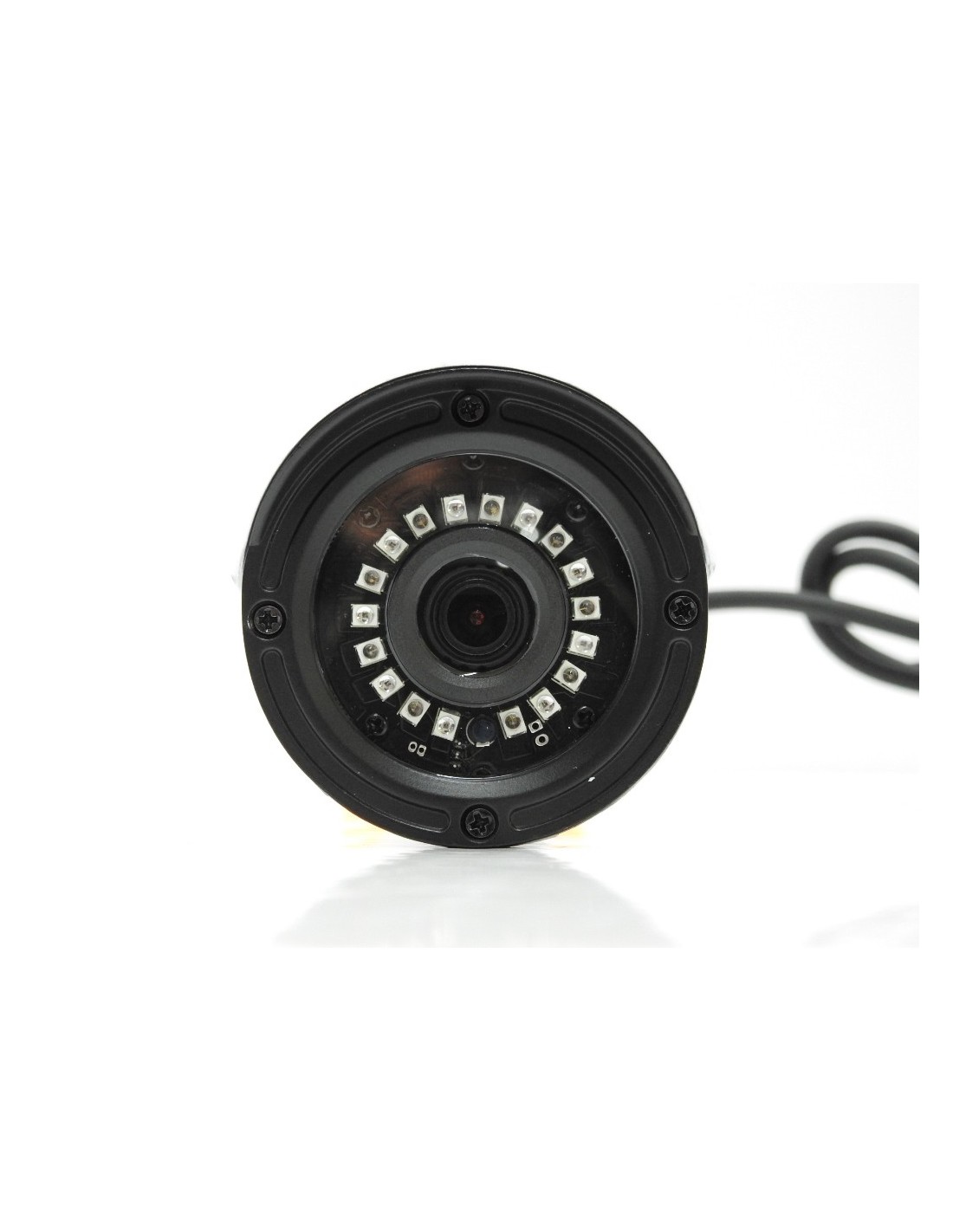

Night Vision |
||
|
Infrared LED |
14µ x 20PCS |
|
|
Infrared Distance |
25M |
|
|
IR Status |
Under 10 Lux by CDS |
|
|
IR Power On |
CDS Auto Control |
|
|
Camera Features |
||
|
Day/Night |
Auto (ICR) / Color / B&W |
|
|
OSD Menu Language |
YES |
|
|
White Balance |
Auto/Manual |
|
|
Gain Control |
Auto |
|
|
Noise Reduction |
3D NR |
|
|
Picture Adjustment |
YES |
|
|
WDR |
DWDR |
|
|
OSD Support |
YES |
|
|
UTC |
NO |
|
|
General |
||
|
Housing |
Metal,IP66 |
|
|

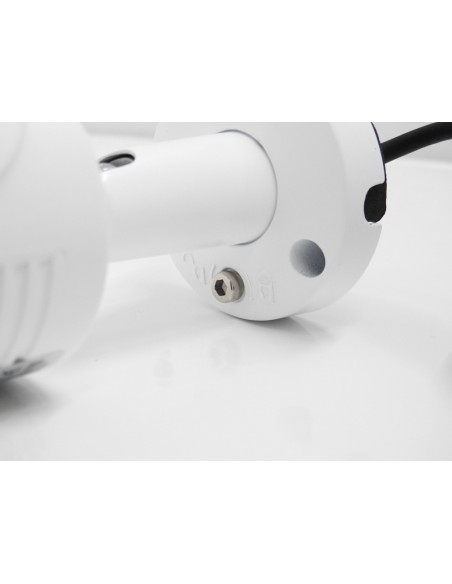

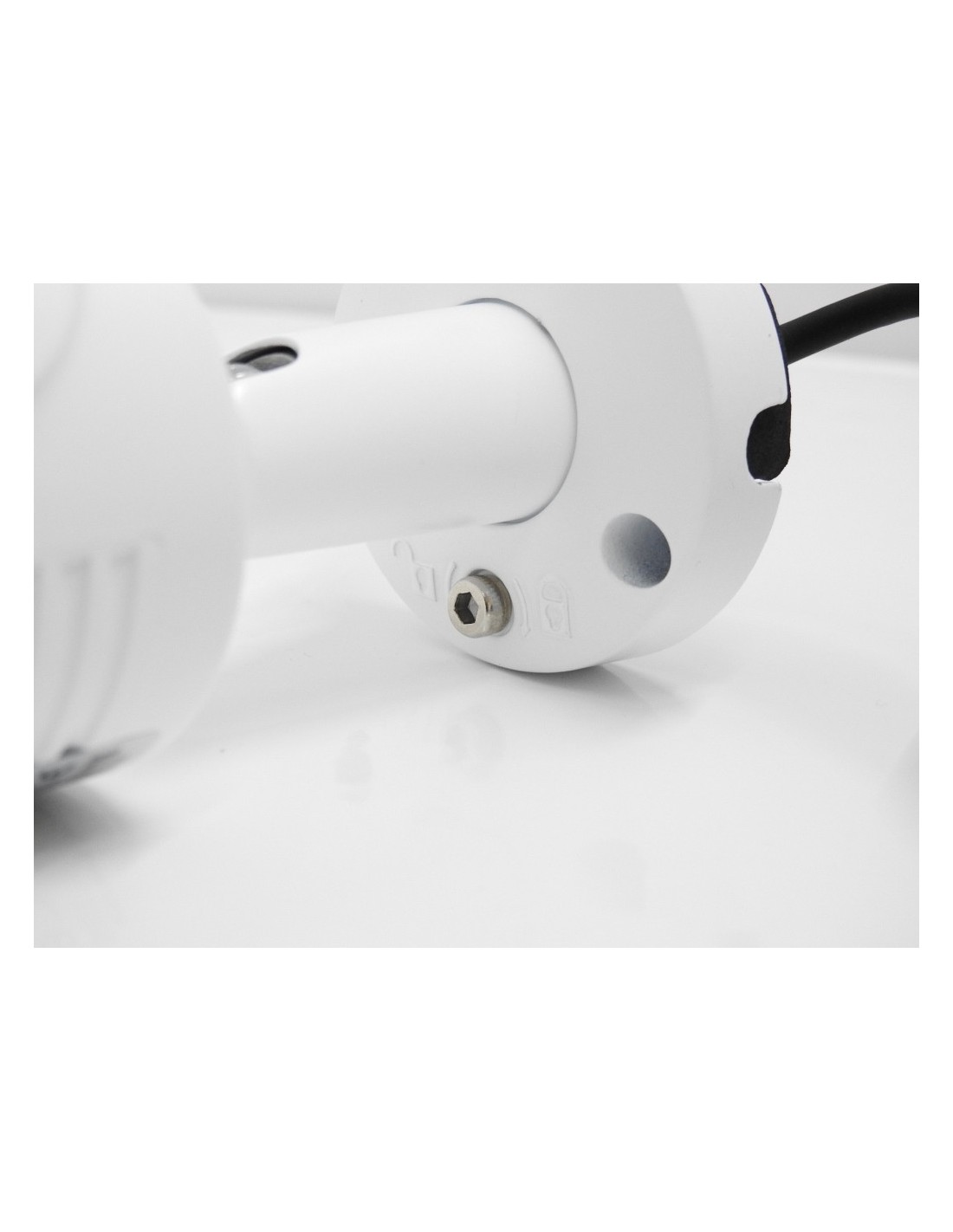

Bracket |
YES, Anti-Cut Bracket |
|
|
Dual Voltage |
NO |
|
|
IR Cut Filter |
YES |
|
|
Heater |
NO |
|
|
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
|
|
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
|
|
Power Source |
DC12V±10%, 500mA |
|
|
Dimension |
172(W) x 67(H) x 65.5(D)mm |
|
|
Weight |
800g |
|
